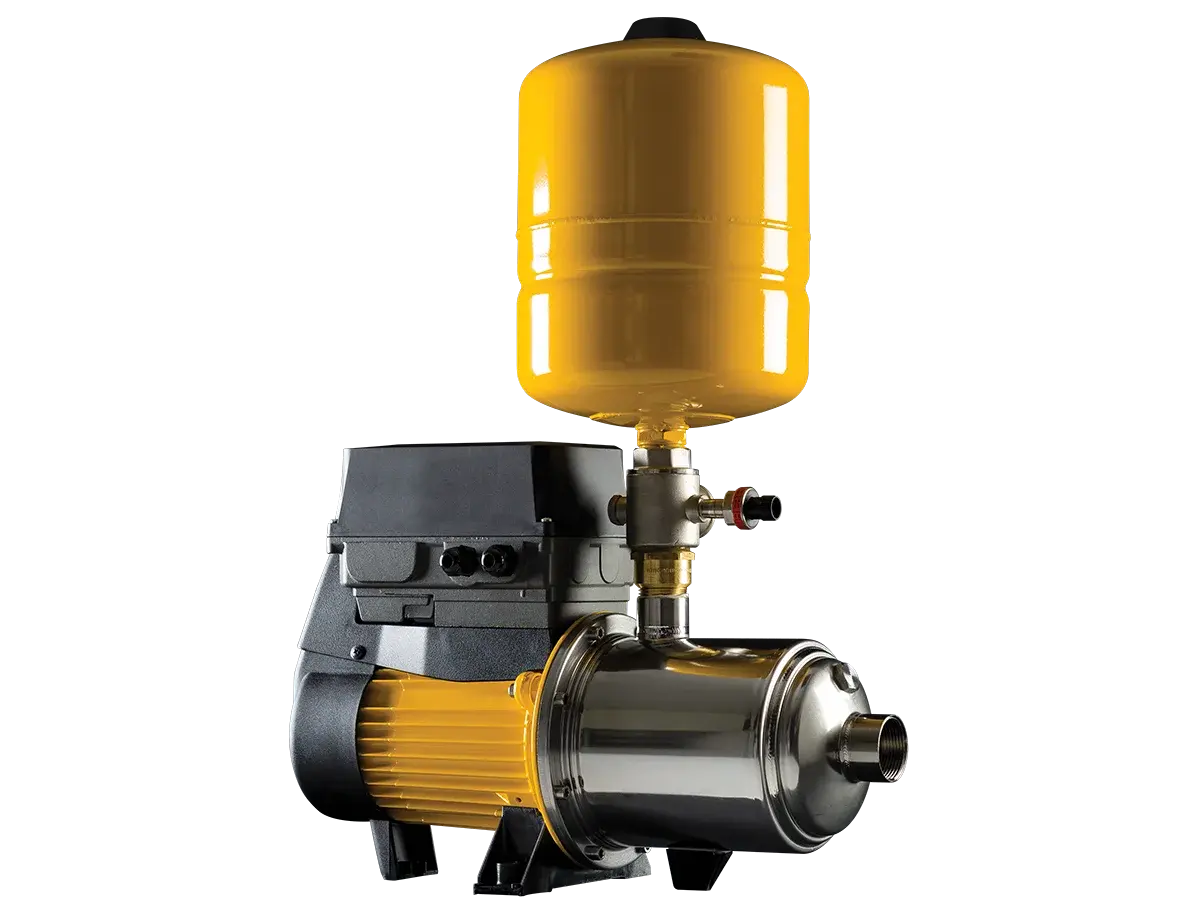

The Davey DynaDrive DD15-35NPT is a horizontal multistage centrifugal pump with all hydraulic parts in stainless-steel - suitable for high water temperatures, corrosion and wear resistant, compact design and easy to install.

120V, Running Current 9.4A, P1 = 0.8kW, refer to spec sheet for more details.
Inlet and outlet are both 1" FPT / NPT(f)

FEATURES & BENEFITS
Horizontal multistage centrifugal pump with
all hydraulic parts in stainless steel:
• Suitable for high water temperatures
• Corrosion and wear resistant
• Compact design
• Easy to install
Stainless steel impellers with high efficiency impeller
profile and thick self-centering impeller neck rings for:
• High efficiency
• Reduced power consumption:
• Low noise output
Impellers mounted directly on extended motor shaft:
• Maximize performance per stage
• High efficiency
• Long motor and pump life
• Increased wear resistance
Pump casing assembly attached to motor bracket at 6
points with o-ring seal:
• Complete stainless casing
• Better sealing
• Longer service life
Davey built, totally enclosed fan
cooled (TEFC) electric motor:
• Sealed and greased for life motor bearings
• Oversized drive end bearing
• Longer life
• Easy service
• Economical and quiet running
• Solid copper windings
CONTROLLER
• Warning indication for system faults
• Adjustable pressure settings
• Constant pressure at high flow rates
• Loss of prime protection
• Capable of daisy chain applications of two pumps in parallel
• Easy service
• Economical and quiet running
